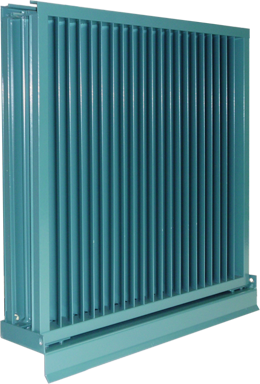

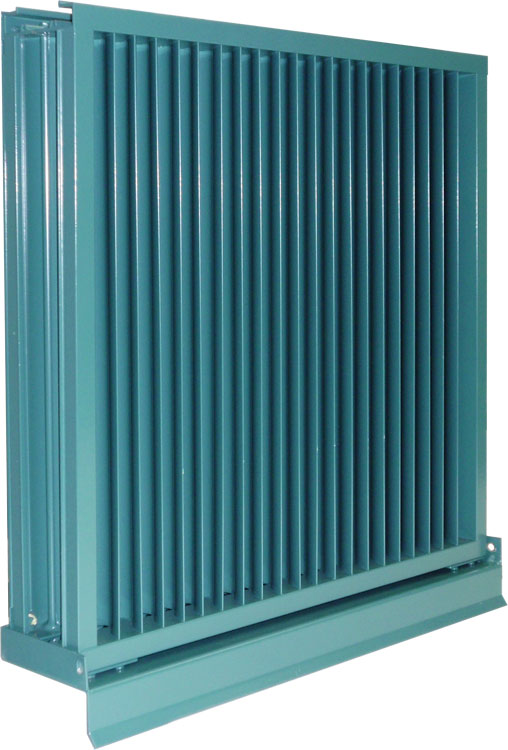

3" Deep Extruded Aluminum Vertical Chezron Blade Rain Resistant Storm Louver

A Division of MESTEK, Inc.

Explore our products with
the Product Pro filtering system.

Model:	A3S8
Filter:	A3S8
Minimum Size:	12" x 12"
Maximum Size:	60" x 96"
Frame Depth:	3" Deep
Frame Material:	.081" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Material:	.040" Thick Extruded Aluminum 6063-T6/T52 Alloy
Drain Sill Pan Material:	.060" Thick Formed Aluminum
Blade Orientation:	Vertical
Blade Type:	Chevron
Blade Angle:	N/A
Continuous Line:	No
Face:	Head and Blades Contained Within Jambs
Screen Options:	Standard Bird Screen: ½" Expanded Aluminum Bird Screen; Variety of Bird and Insect Screen Options
Free Area:	44% (7.06 ft² for 48" x 48")
Pressure Drop:	0.085 in. w.g. at 1000 fpm and 7060 scfm
AMCA:	Certified for Air Performance and Water Penetration
