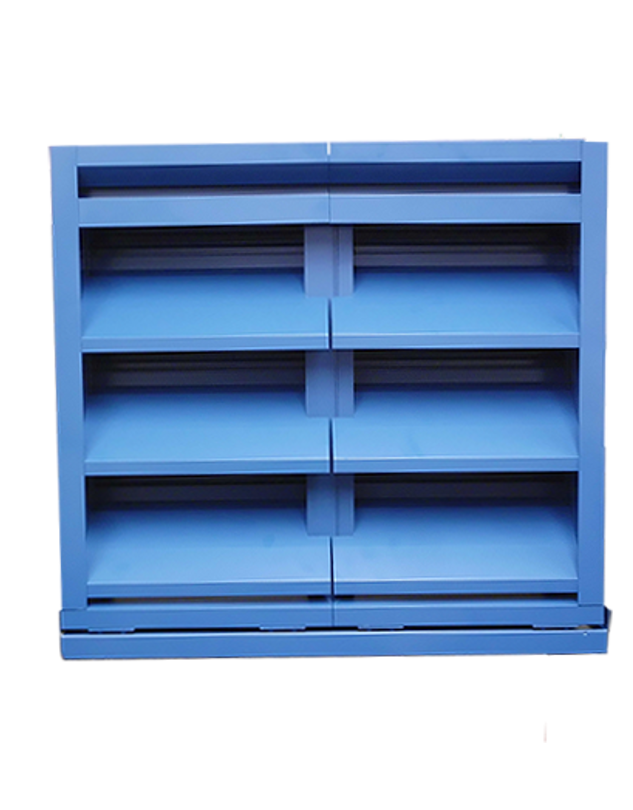

6" Deep Continuous Line Extruded Aluminum Drainable Blade Louver with Recessed Mullions

A Division of MESTEK, Inc.

Explore our products with
the Product Pro filtering system.

Model:	X6D5
Filter:	X6D5
Minimum Size:	12" x 12"
Maximum Size:	60" x 120" or 120" x 60"
Frame Depth:	6" Deep
Frame Material:	.081" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Material:	.125" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Orientation:	Horizontal
Blade Type:	Drainable
Blade Angle:	N/A
Continuous Line:	Yes, Recessed Mullions
Face:	Full Width Sill; Head and Blades in Jambs
Screen Options:	Standard Bird Screen: ½" Flattened Aluminum; .051" Thick Variety of Bird and Insect Screen Options
Free Area:	53% (8.40 ft² for 48" x 48")
Water Penetration:	1200 fpm
Pressure Drop:	.09" in. w.g. at 800 fpm and 6720 scfm
AMCA:	Certified for Air Performance and Water Penetration
