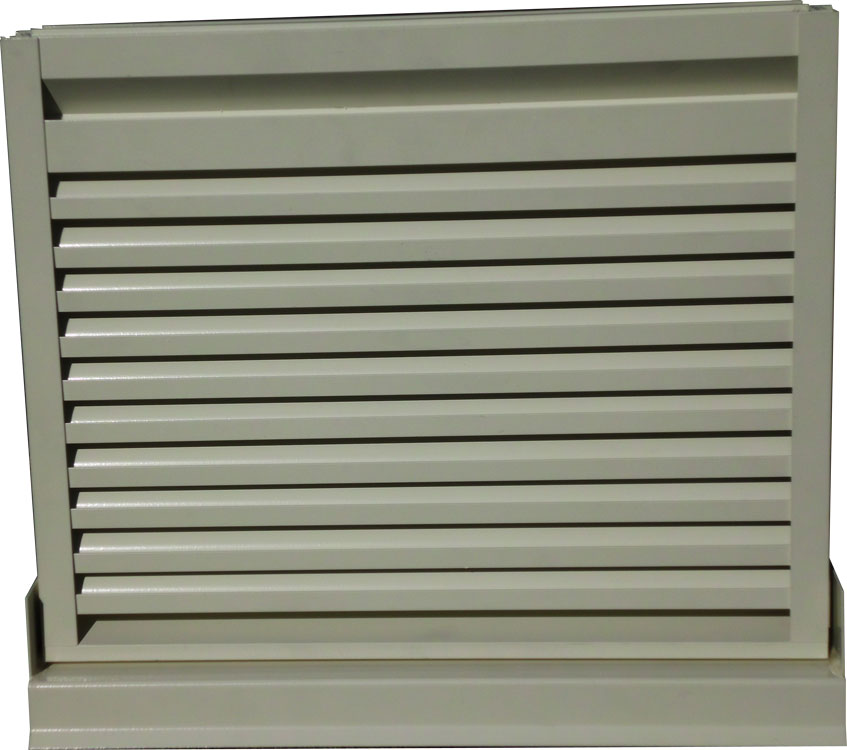

2" Deep Horizontal Chevron Drainable Blade Wind-Driven Rain Resistant Louver

A Division of MESTEK, Inc.

Explore our products with
the Product Pro filtering system.

Model:	X2HW
Filter:	X2HW
Minimum Size:	12" x 12"
Maximum Size:	60" x 96"
Frame Depth:	2" Deep
Frame Material:	.063" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Material:	.063" Thick Extruded Aluminum 6063-T6/T52 Alloy
Drain Sill Pan Material:	.060" Thick Formed Aluminum
Blade Orientation:	Horizontal
Blade Type:	Chevron Drainable
Blade Angle:	N/A
Continuous Line:	No
Face:	Head and Blades Contained within the Jambs
Screen Options:	Standard Bird Screen: ½" Expanded Aluminum Bird Screen; Variety of Bird and Insect Screen Options
Free Area:	43.3% (6.93 ft² for 48" x 48")
Pressure Drop:	0.01 in. w.g. at 748 fpm and 5408 scfm
AMCA:	Certified for Air Performance and Wind Driven Rain
