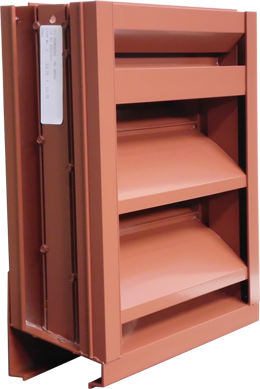

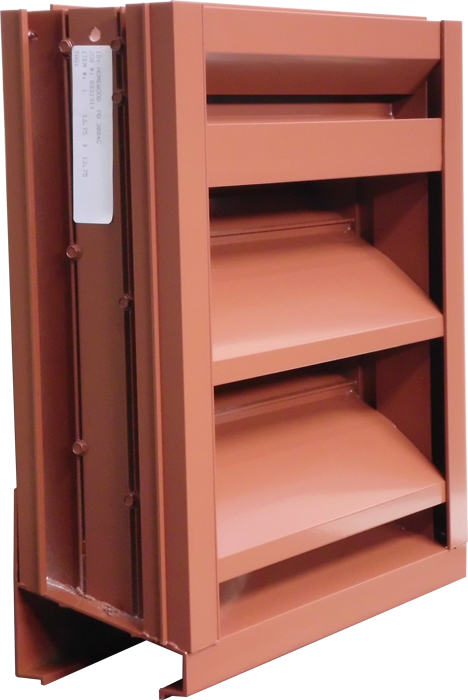

6" Deep 45° Non-Drainable Blade Extruded Aluminum Louver

A Division of MESTEK, Inc.

Explore our products with
the Product Pro filtering system.

Model:	X6K4
Filter:	X6K4
Minimum Size:	12" x 12"
Maximum Size:	60" x 96"
Frame Depth:	6" Deep
Frame Material:	.081" or .125" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Material:	.125" Thick Extruded Aluminum 6063-T6/T52 Alloy
Blade Orientation:	Horizontal
Blade Type:	Non-Drainable
Blade Angle:	45°
Continuous Line:	Optional
Face:	Full Width Sill; Head and Blades Contained in Jamb
Screen Options:	Standard Bird Screen: ½" Flattened Aluminum; .051" Thick Variety of Bird and Insect Screen Options
Free Area:	55% (8.73 ft² for 48" x 48")
Water Penetration:	1093 fpm
Pressure Drop:	.16" in. w.g. at 1093 fpm and 9541 scfm
AMCA:	Certified for Air Performance and Water Penetration
